[KSCZ-90C] Vacuum inflating trolley, 10m³/h Speed, 10Pa, 380V, Digital Display - Made in China

  • [KSCZ-90C] Vacuum inflating trolley, 10m³/h Speed, 10Pa, 380V, Digital Display - Made in China
Lieu d'origine Shanghai
Nom de marque KSTONE
Certification ISO9000
Numéro de modèle KSCZ-90C
Quantité de commande min 1
Prix $4600-$5000
Détails d'emballage Boîte en bois
Délai de livraison 20 jours
Conditions de paiement T / t
Capacité d'approvisionnement 100 par an

Contactez-moi pour des échantillons gratuits et des coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.

x
Détails sur le produit
Mettre en évidence

230V Industrial Vacuum Pump

,

KSCZ-4 Industrial Vacuum Pump

,

2XZ-4 Industrial Vacuum Pump
Laisser un message
Description de produit

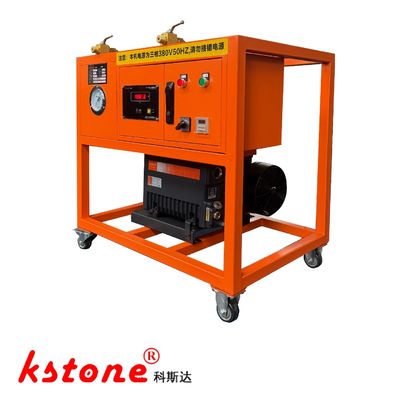

[KSCZ-90C] Vacuum inflating trolley, with 90m³/h Speed, 10Pa, 380V, Digital Display - Made in China


The KSCZ-90C is a hand-pushed industrial vacuum pump system integrated with a  vacuum pump. It delivers a pumping speed of 90 m³/h and can reach a minimum vacuum degree of 10 Pa, ensuring reliable performance for various vacuum-dependent tasks.

To enable precise monitoring, the equipment is equipped with a digital display for vacuum measurement, allowing operators to obtain real-time and accurate readings—eliminating the inaccuracies of traditional analog monitoring methods.

In terms of power configuration, the KSCZ-90C works with a 380V power supply and has a rated power of 2.2 kW, supporting stable operation even during extended working periods. Manufactured in China, it is well-suited for vacuum operations in scenarios such as laboratories and workshops.

Attachment:
1. Pressure reducing valve, low pressure end pressure range optional;
2. One inflation pipeline, DN8,5m
3. One DN20 pipeline, 5m
4. Certificate of Conformity
5. Instruction manual
6. Factory Test Report

KSCZ-90C Hand-Pushed Industrial Vacuum Pump Parameter Table

Parameter Category Specification
Model Number KSCZ-90C
Equipment Form Hand-Pushed
Equipped Vacuum Pump 90
Vacuum Speed 90m³/h
Minimum Vacuum Degree 10 Pa
Vacuum Measuring Method Digital Display
Power Supply 380V
Rated Power 2.2 kW
Country of Origin China

[KSCZ-90C] Vacuum inflating trolley, 10m³/h Speed, 10Pa, 380V, Digital Display - Made in China 0
